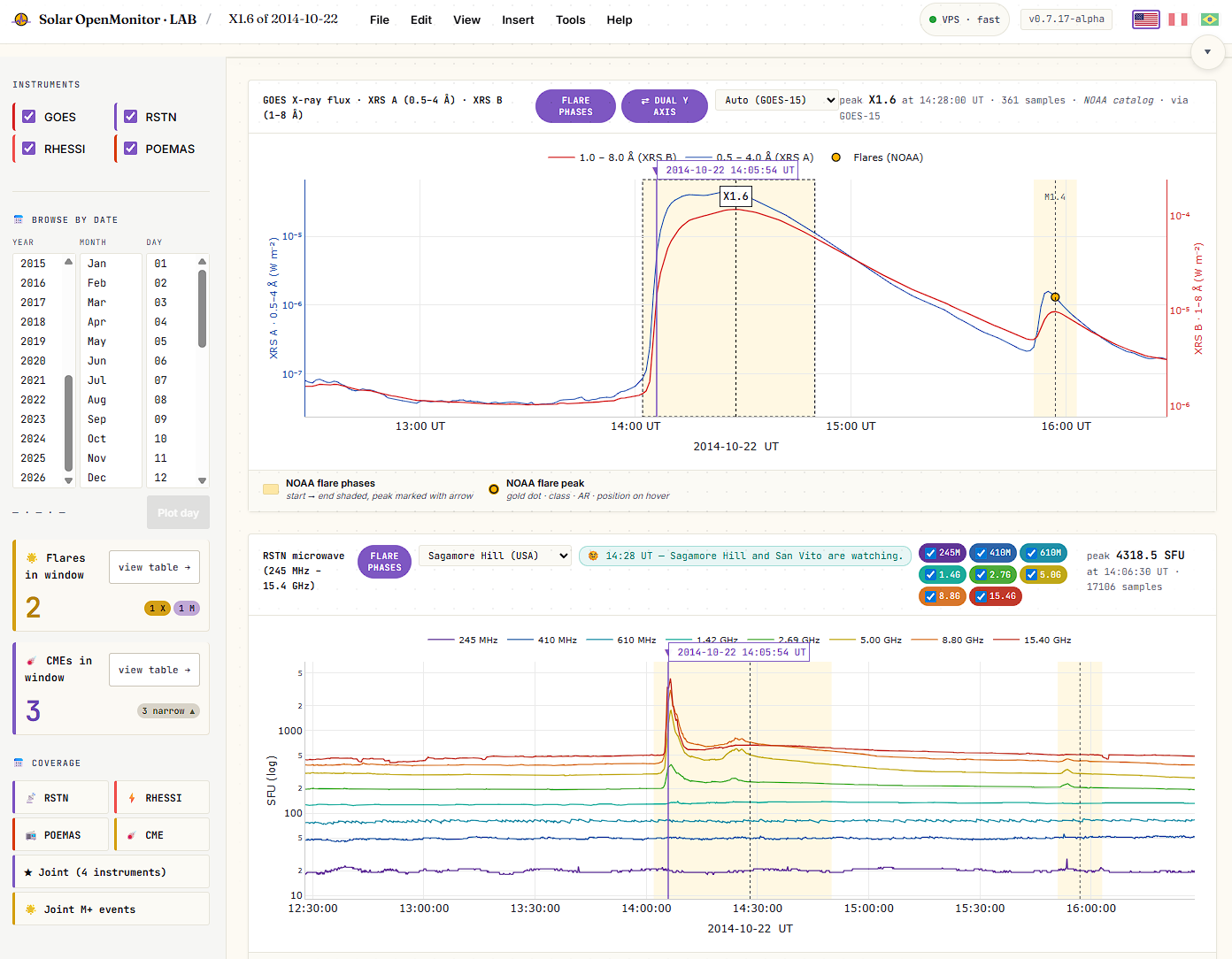

Interactive GOES XRS A/B soft X-ray viewer, 1995 to present · multi-wavelength panels coming.
SXR: XRS A 0.05–0.4 nm (blue) · XRS B 0.1–0.8 nm (red) · Yellow dots: cataloged flare peaks (NOAA SWPC).
GOES-08 to GOES-15 fluxes rescaled ×0.85 A, ×0.70 B to match the legacy NOAA classification;
GOES-16 and GOES-18 native. RSTN: 10-second median + min/max envelope from one of 4 stations × 8 frequencies (245 MHz – 15.4 GHz),
NOAA NCEI archive, 2009-12 → 2016-12. Click the ⓘ button for methods, citation and roadmap.
